No Hot Water? Step-by-Step Diagnostic Guide for Littleton Homes

Before heading down to your utility room or basement, start by verifying whether the lack of hot water impacts your entire residence or just a single bathroom or sink. Turn on the hot water tap at multiple fixtures throughout your house, including your kitchen sink, an upstairs bathroom vanity, and a tub. If you discover that hot water flows normally at your master bathroom vanity but runs freezing cold at the shower, your water heater is functioning properly. The culprit in this scenario is almost certainly a failed pressure-balancing shower cartridge. Inside modern shower mixing valves, a mechanical spool or thermostatic cartridge balances hot and cold line pressures. When mineral scale accumulates or internal rubber seals wear out, the cartridge seizes in the cold position, blocking hot water flow. Conversely, if every fixture across your home discharges ice-cold water with normal water pressure, your water heater has lost heating capability. Proceed to identify your system fuel type—natural gas, electricity, or tankless—to begin targeted diagnostics.

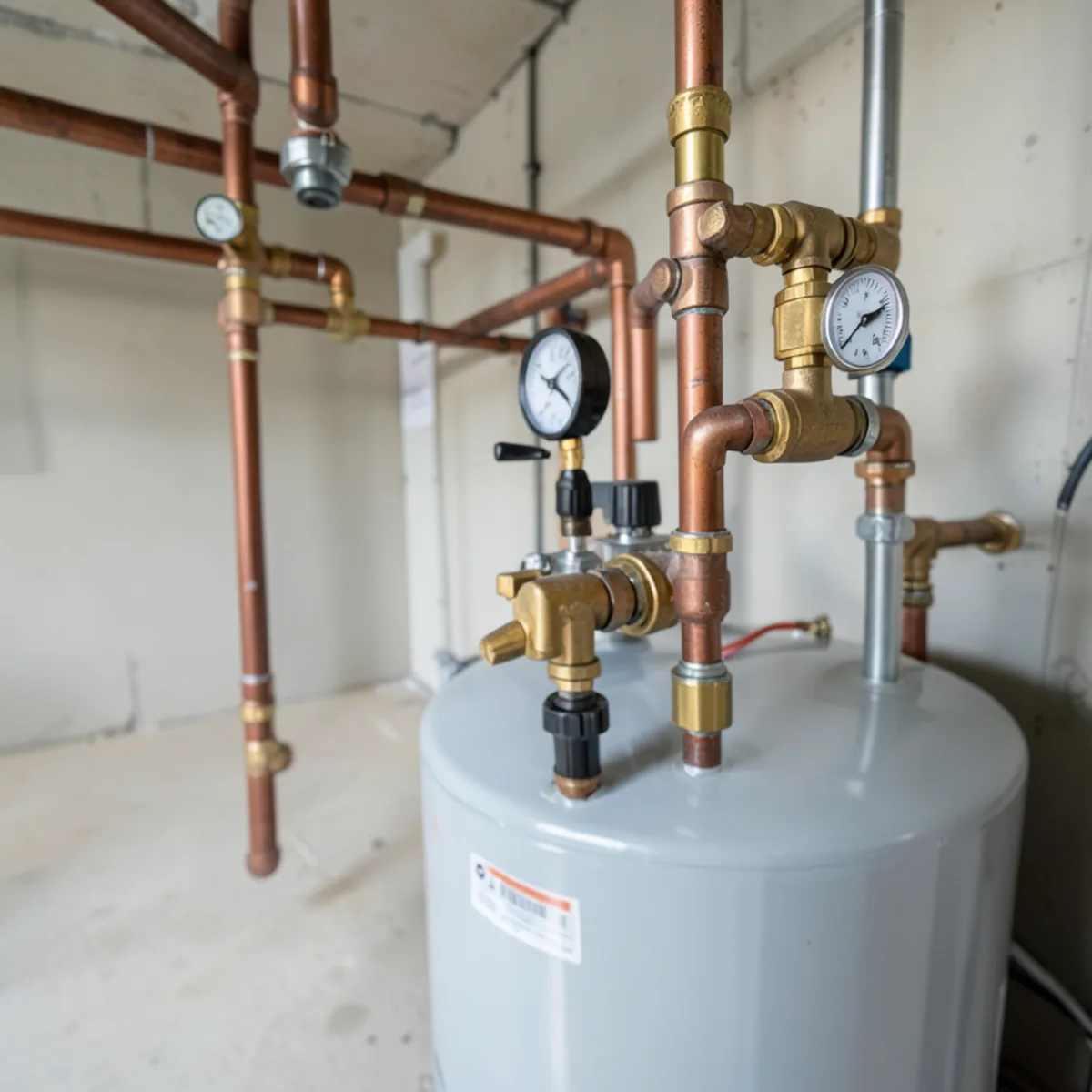

In Littleton and across the Denver metro area, natural gas storage water heaters are the most prevalent heating appliance. If your gas unit has stopped heating, systematically investigate the following components: First, check the status light on the front of the gas control thermostat. Most modern water heaters manufactured over the last fifteen years feature an LED diagnostic indicator powered by the internal thermopile. If the LED is flashing a steady single green pulse every three seconds, the pilot is lit and the system is in standby mode. If the LED is dark, the pilot flame has extinguished. To inspect the pilot assembly on older or non-electronic units, peer through the glass viewing window located near the base of the tank. If you see no blue flame, consult the manufacturer lighting instructions printed directly on the tank jacket. Standard relighting involves setting the control knob to PILOT, pressing down firmly on the knob to start pilot gas flow, and clicking the piezo spark igniter repeatedly. If the pilot sparks, catches fire, but immediately extinguishes the moment you release the control knob, the thermocouple or thermopile is likely defective. The thermocouple is a safety probe that generates a small millivolt electrical current when heated by the flame, signaling the gas valve that it is safe to open main burner ports. If the probe is coated in soot, loose, or oxidized, it shuts off gas flow to prevent unburned fuel accumulation. Additionally, verify whether your home has natural gas service by checking other gas appliances, such as your furnace or kitchen cooktop. If no gas appliances fire, verify that your exterior gas meter valve has not been closed.

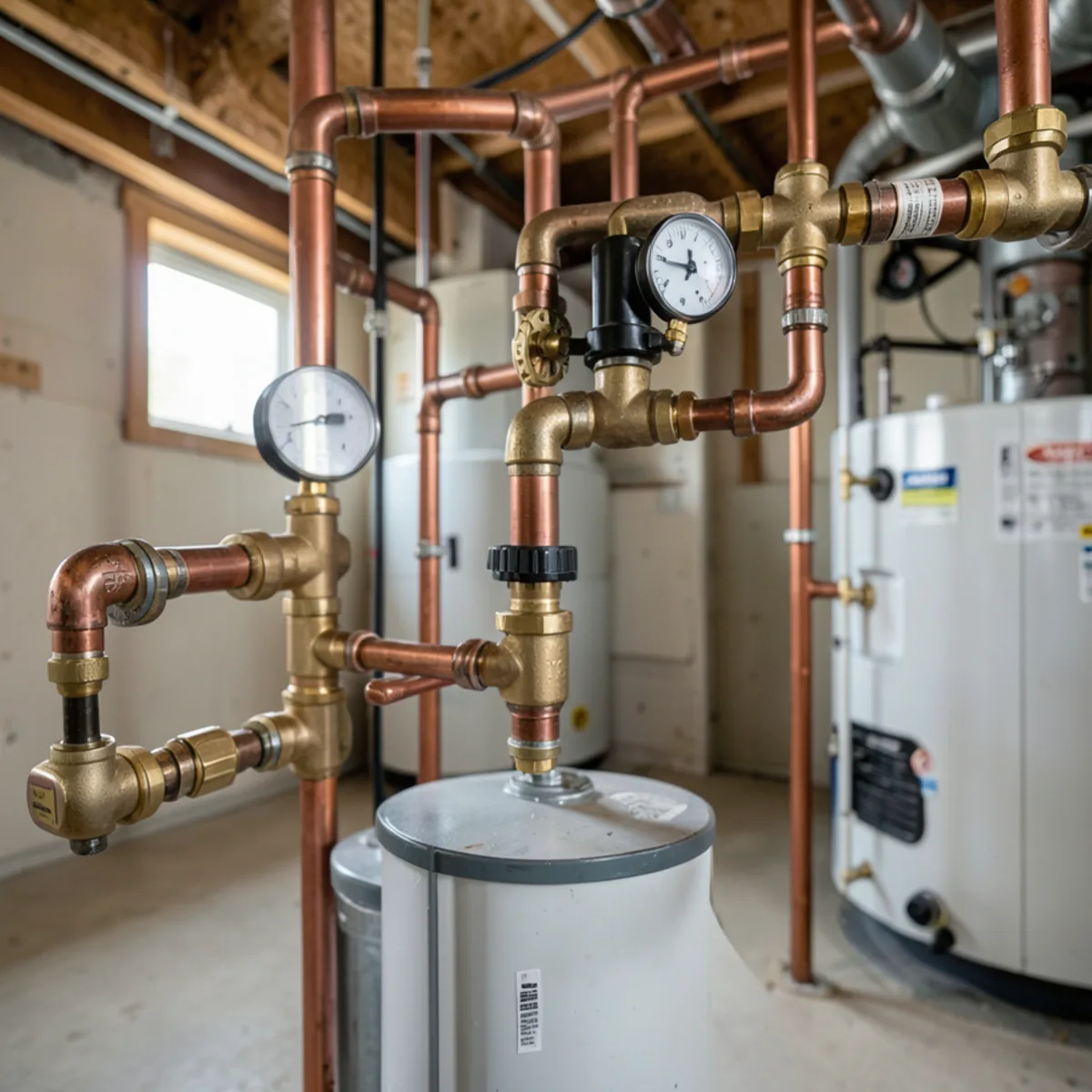

Electric storage water heaters operate on a dedicated 240-volt alternating current circuit. Because electric tanks have no pilot flames or exhaust vents, troubleshooting focuses on the electrical distribution system: Step one is checking your main electrical service panel. Electric water heaters draw substantial electrical loads (typically 18.75 amps on a 30-amp circuit for dual 4,500-watt elements). An electrical surge, loose wire terminal, or aging breaker can cause the double-pole breaker to trip. Check for a breaker handle sitting in the center tripped position. To reset it properly, flip it firmly to full OFF before switching it back to ON. Step two involves the emergency high-limit reset button (ECO switch). Before touching the water heater, switch off the dedicated 240V breaker. Remove the upper rectangular metal access cover on the side of the tank and fold back the fiberglass insulation batting to expose the upper thermostat. Located above the temperature adjustment dial is a red button labeled RESET. If an electrical surge or severe sediment buildup caused internal tank temperatures to spike above 180°F, the ECO safety switch pops out to prevent water boiling. Firmly press the red button until you hear a distinct mechanical click. If the button clicks, replace the covers, restore power, and listen for the hum of heating elements. If the breaker trips again immediately or the reset button trips repeatedly, an electrical short exists in the upper or lower heating element.

On-demand tankless water heaters require different diagnostic steps. Because tankless units only activate when water is actively moving through the heat exchanger, lack of hot water often relates to flow rates or sensors: Minimum Flow Threshold: Modern tankless units require an activation flow rate of at least 0.4 to 0.6 gallons per minute (GPM). If you are running an ultra-low-flow aerator or just cracking a faucet, the internal flow turbine will not detect water movement, and the burner will not ignite. Fully open the hot tap to see if the unit fires. Combustion Air and Vent Blockages: Front Range winter cold snaps can bring heavy snow drifts and freezing winds. Tankless units utilize dual direct-vent PVC or polypropylene piping that terminates through exterior sidewalls. Inspect exterior vent hoods to ensure blowing snow or icicles are not blocking combustion air intakes or exhaust terminations. Blocked intake air causes instant ignition lockouts. Mineral Scale Encrustation: Tankless heat exchangers contain narrow copper waterways. Denver Water mineral hardness will coat these tubes in calcium carbonate over 18 to 24 months if the system is not descaled annually. Excessive scale restricts flow, causes rapid overheating, and triggers diagnostic error codes (such as Code 11 or Code 12 on Rinnai or Navien units) displayed on the digital control screen.

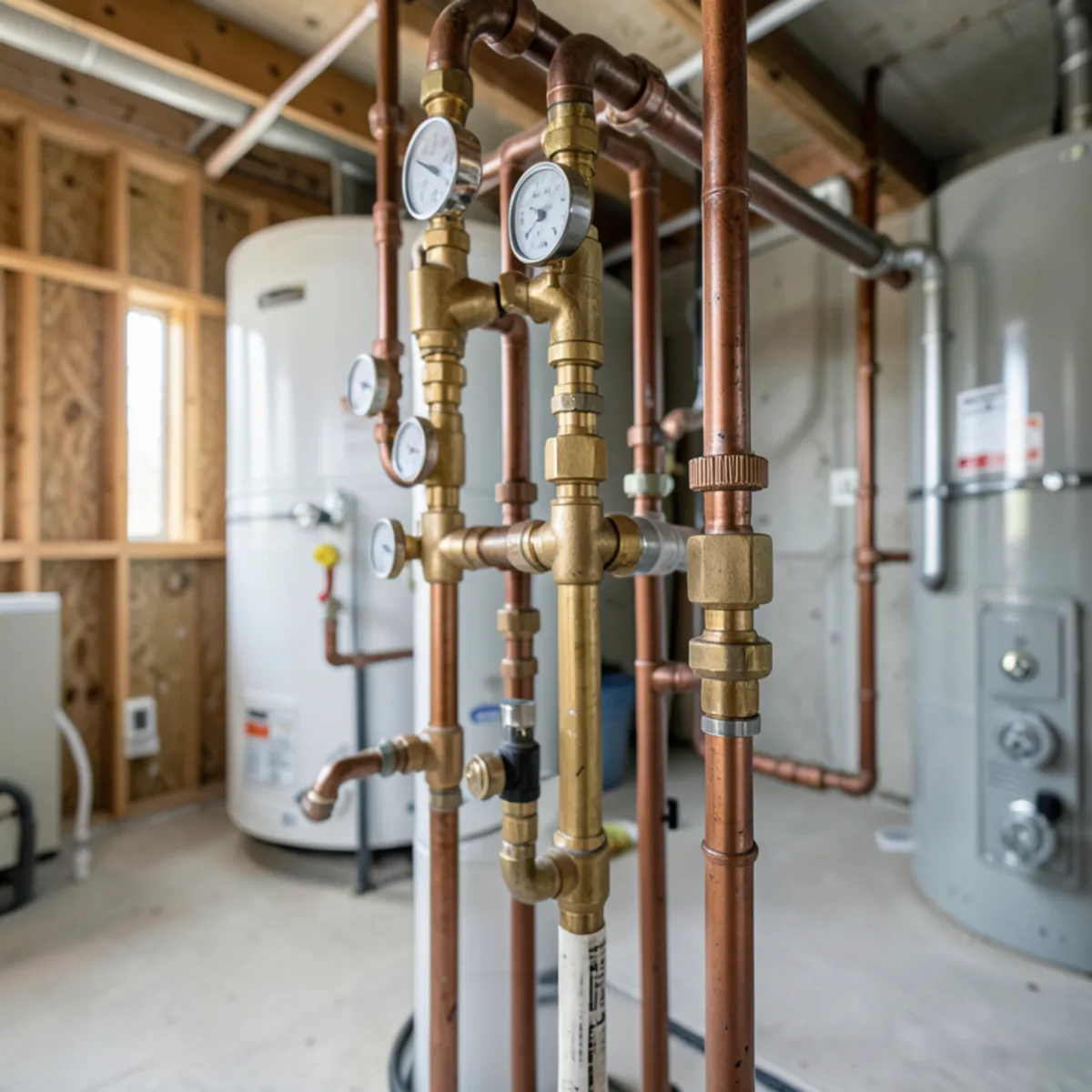

A unique scenario occurs when your water heater is firing and consuming energy, yet you only receive lukewarm water, or hot water that disappears after just two minutes of shower use. In storage tank water heaters, this symptom almost always indicates a snapped or disintegrated cold water dip tube. The dip tube is a long plastic pipe connected to the cold water inlet nipple at the top of the tank. Its purpose is to deliver incoming cold water straight to the bottom of the cylinder, directly adjacent to the gas burner or lower electric element. This allows hot water to naturally rise to the top of the vessel (thermal stratification) where it feeds your home fixtures. Between 1993 and 1997, defective polypropylene dip tubes were widely installed, but even modern PEX dip tubes can crack after a decade of service. When the tube breaks near the top of the tank, incoming cold water short-circuits directly into the hot water outlet pipe without ever reaching the bottom heating zone. A telltale sign of dip tube disintegration is discovering small white, crumbly plastic fragments clogging your faucet aerators and showerheads. Replacing a dip tube is a straightforward repair that restores full hot water capacity.

While checking electrical breakers, verifying gas valves, and clearing aerators are safe DIY tasks, advanced diagnostics involve serious electrical and combustible gas hazards. You should immediately cease DIY troubleshooting and contact a licensed professional in the following circumstances: 1. You smell natural gas or sulfur (mercaptan) anywhere near the water heater. Immediately evacuate your home, leave the front door open, do not toggle any electrical light switches, and call Xcel Energy or emergency services from outdoors. 2. You observe scorched, blackened, or melted wiring terminals inside the electrical access panels, indicating loose connections and severe fire risks. 3. The temperature and pressure relief valve is continuously discharging scalding water or steam, indicating dangerous thermal runaway or unregulated pressure. 4. Water is actively leaking from the bottom seam of the tank or into the burner chamber. At Littleton Water Heaters, our trucks are fully stocked with universal thermostats, thermocouples, factory-certified gas valves, and Bradford White heating elements. Call (201) 277-9344 to speak with our local dispatch desk for prompt troubleshooting and repair.
